Suction scrapers with edge traction for final sedimentation

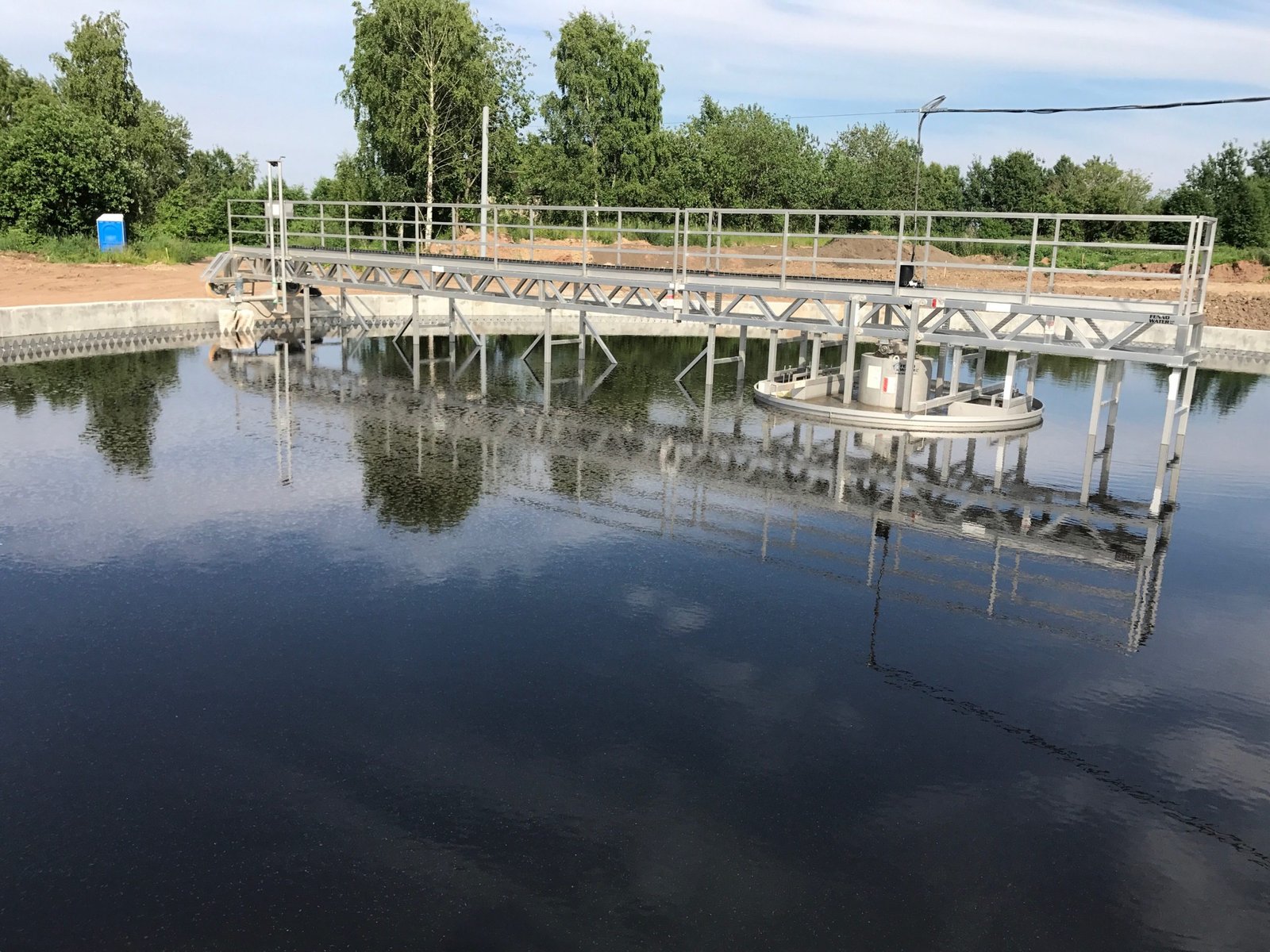

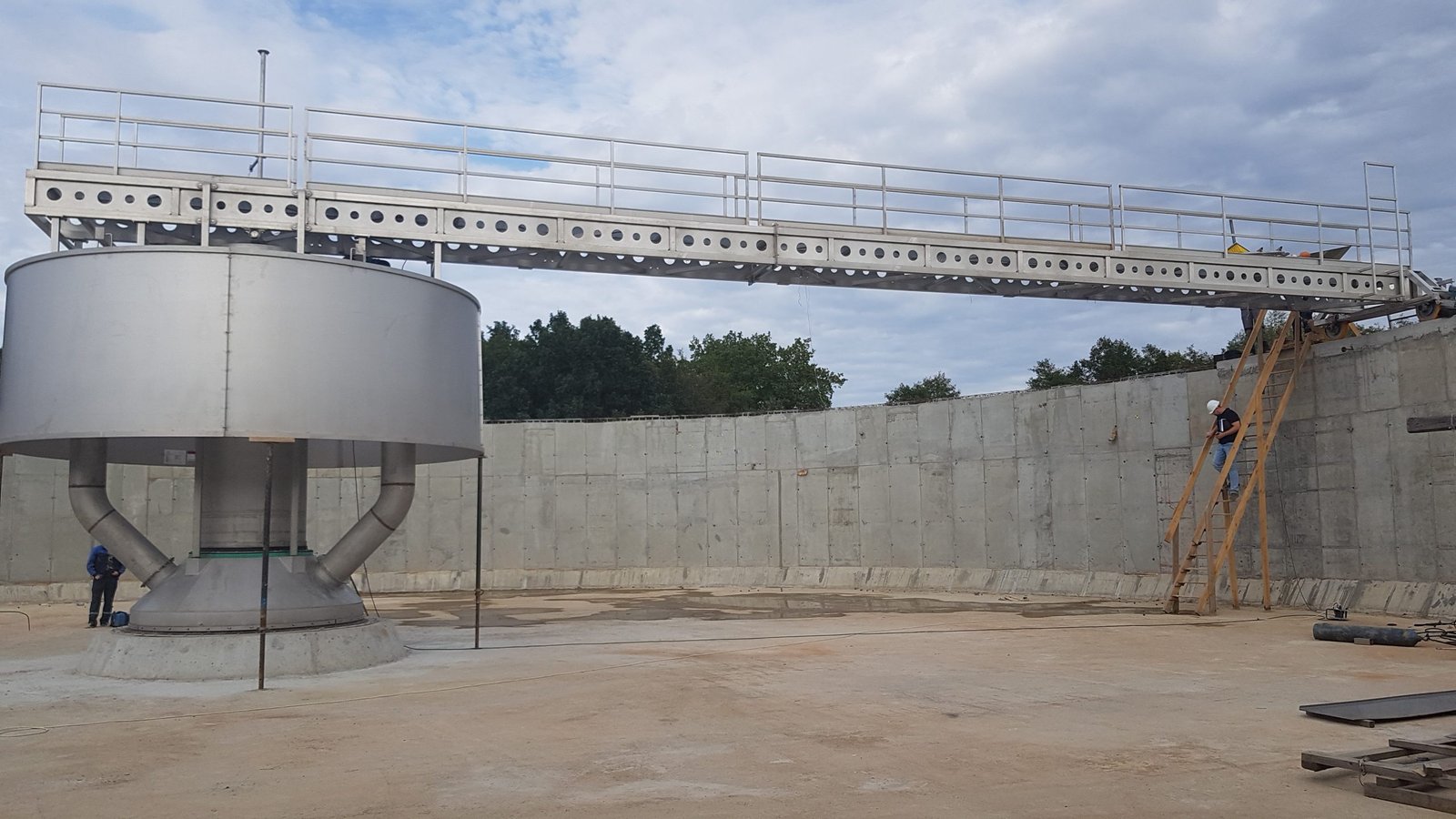

We manufacture suction scrapers for final sedimentation with edge drive to round basins. The scraper plates and suction boxes are attached to the bridge that rotates around the basin’s central column. The drive sprocket of the rotating system is installed at the basin’s wall. The drive sprocket runs on the wall of the basin. The bridge is connected to the central column with bearing.

The scraper plates and suction boxes are triangular, pulling inwards. The suction force is generated by the telescopic pipes attached to the bridge at the top part of the basin, installed in steel boxes. The bridge scraper can also be implemented for half of the basin diameter, the entire basin diameter or for 1/2 +1/6 of the basin diameter. A surface sludge removal device can be installed in the basin.

  • wide range of dimensions
  • suitable for different kinds of water
  • floating sludge removal units also available for these units
  • for basin diameters 10.0–60.0 m
ModelDimensioning [m3/h]
FW Suction scraper SS100 – 3 500
